Intelligence that moves industry.

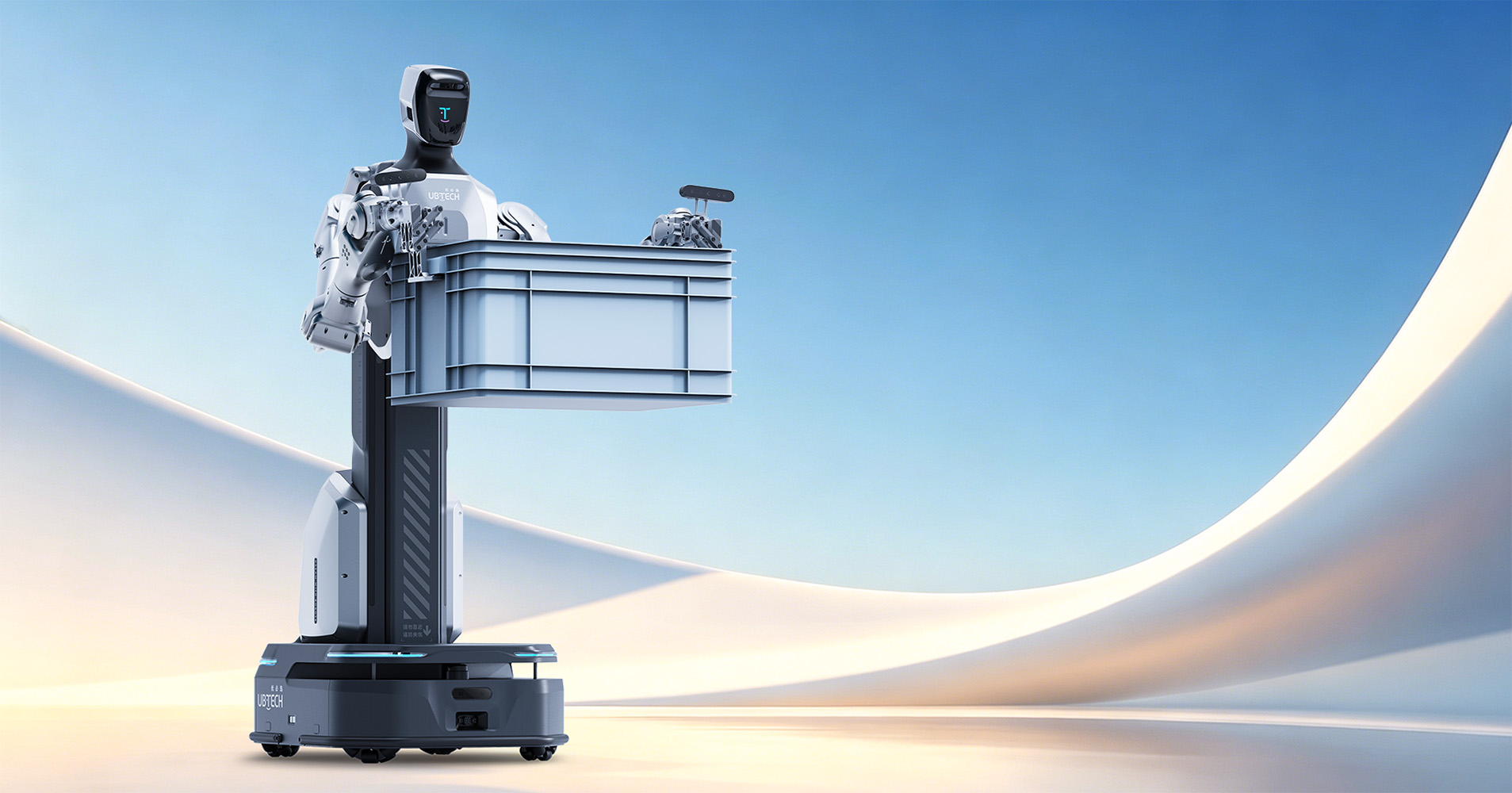

Cruzr Y1 combines omnidirectional mobility, two anthropomorphic arms and embodied intelligence to connect warehousing, manufacturing and logistics. It perceives its surroundings, plans tasks and handles materials on a mobile industrial platform.
Coordinated mobility, handling and perception for industrial tasks. Configuration and operational performance are validated in your environment.
Each arm has 7 degrees of freedom and a 750 mm reach. The anthropomorphic design supports approaching, grasping and placing materials at different stations. The advertised payload is 10 kg for both arms combined.
UBTECH context · multiple models →The base can rotate 360° on the spot. UBTECH advertises navigation through 0.8 m aisles; actual clearance depends on the route, posture and materials carried.
UBTECH context · multiple models →The modular quick-change system supports tools for cartons, bins and irregular parts. Grippers, fingers and included accessories must be defined in the proposal.
UBTECH context · multiple models →LiDAR, ToF, RGB and force sensors help interpret space, locate objects and guide handling. The platform includes 360° LiDAR perception and voice interaction.
UBTECH context · multiple models →The perception, decision, grasp and placement chain supports planning and executing work sequences. UBTECH Co-Agent supports industrial task coordination.
UBTECH context · multiple models →Over 4 hours of battery runtime and fast charging under 1.5 hours, according to the manufacturer. Quick battery swapping and automatic charging support a continuous-operation strategy.
UBTECH context · multiple models →Official videos organised by model and demonstration.
These videos present the ecosystem and several UBTECH robots. They are not exclusive demonstrations of this model; its specifications are listed in the technical sheet.
Coordination between robots presented by UBTECH.
Open official video ↗An overview of several robots and manufacturer demonstrations.
Open official video ↗A combined range presentation; consult each model’s technical sheet.
Open official video ↗Applications presented by UBTECH. Tools, machine integration and cycle times are assessed for each project.

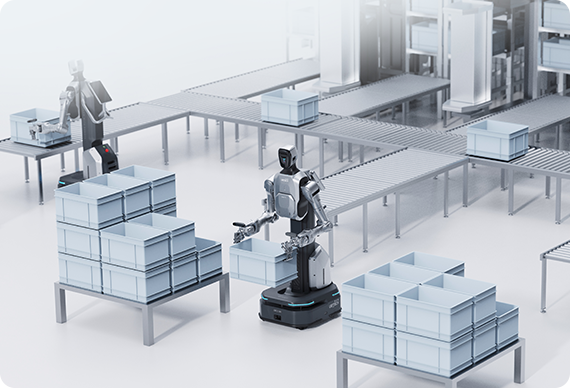

Carton handling that adapts to box dimensions and connects with line workflows. Pallet patterns, weights and throughput must be tested using your materials.

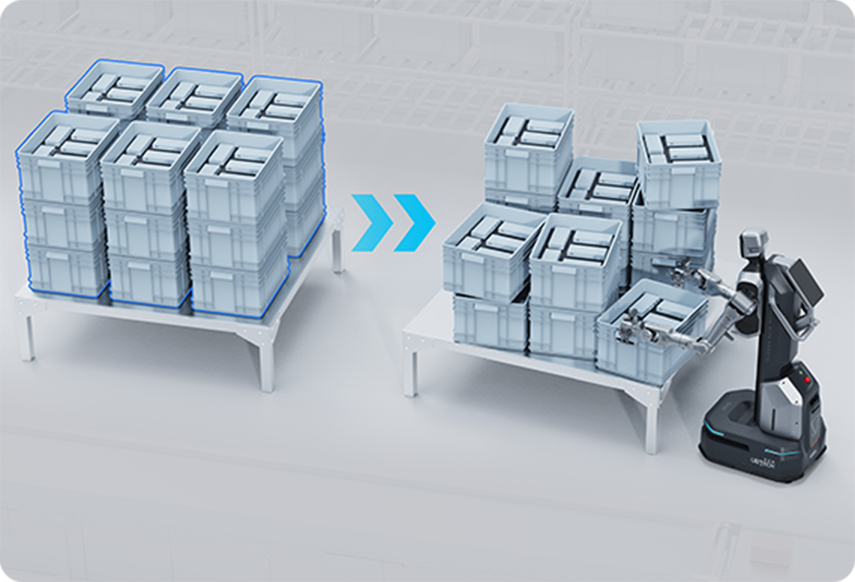

Perception and planning support responses to misaligned materials or disorganised loads. Exception recovery is assessed during the pilot.

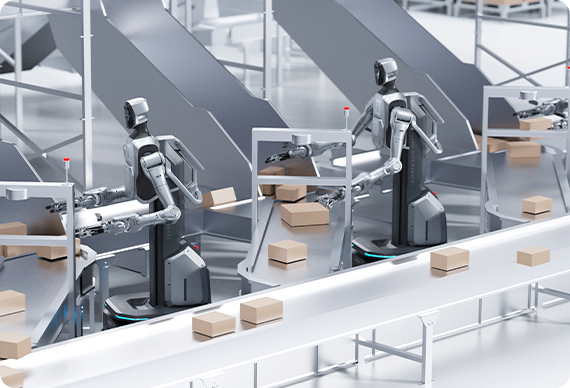

Sorting and handling mixed, unordered or irregular materials. Assessment covers recognition, grasp success and placement.

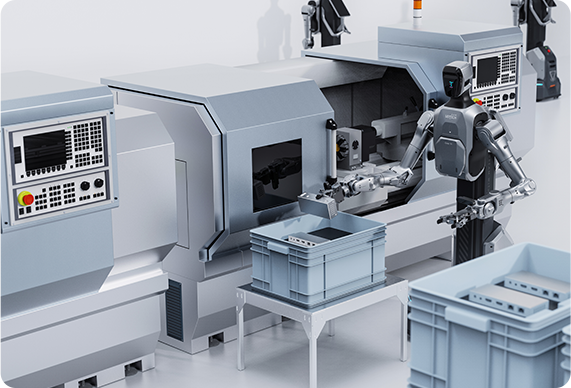

Loading and unloading CNC and moulding machines in coordination with work cycles. Integration must address machine signals, access, tools and safety.
Values published on the official UBTECH page reviewed on 30 September 2026. Advertised values do not replace application validation.
| Parameter | Value / capability | How to interpret it |
|---|---|---|
| Architecture | Mobile industrial wheeled humanoid | Two-arm handling with a mobile base. |
| Degrees of freedom | 7 per arm | 14 across both arms; not the total for the entire robot. |
| Arm reach | 750 mm | Advertised arm reach; separate from vertical reach. |
| Dual-arm payload | 10 kg, combined | Do not interpret as 10 kg per arm. |
| Repeatability | ±0.5 mm | Advertised handling value; not navigation accuracy. |
| Vertical reach | 0–1.8 m | Advertised vertical working range. |
| Mobility | Omnidirectional; 360° rotation on the spot | Travel and station approach. |
| Aisles | 0.8 m, according to UBTECH | Validate clearance, turns, posture, obstacles and payload. |
| Battery runtime | Over 4 hours | Actual duration depends on tasks and conditions. |
| Fast charging | Under 1.5 hours | Advertised manufacturer value. |
| Energy management | Quick battery swapping and automatic charging | Supports 24/7 planning; does not mean 24 hours on one charge. |
| Tools | Modular quick-change grippers | Selected to match materials and tasks. |
| Perception | LiDAR, ToF, RGB and force sensors | Multimodal information for surroundings and handling. |
| Interaction and operation | Touchscreen, voice and ergonomic handle | Manage tasks, maps, skills and devices; manual push movement. |
| Industrial intelligence | Autonomous planning and UBTECH Co-Agent | Perception → decision → grasp → place. |
Dimensions, mass, top speed, battery chemistry, environmental limits, integration interfaces and certifications must be confirmed in documentation for the proposed configuration. These are not detailed on the official page reviewed.
HUMATRIX assesses the use case and prepares a technical and commercial configuration for Portugal and Spain.
Objects, weights, dimensions, source, destination, throughput and process exceptions.
Floor, aisles, turns, stations, charging areas and pedestrian routes.
Grippers, accessories, machine communication and potential production or warehouse system integration.
Measure cycle times, availability, success rate, fault recovery and quality.
Risk assessment, procedures, training, maintenance and charging strategy.
No. The official page presents 10 kg as the combined payload of both arms. Load distribution, tooling and posture must be checked for the task.
No. This is the handling repeatability advertised by UBTECH. Base positioning accuracy and process tolerance must be confirmed separately.
That is not the manufacturer’s claim. Advertised battery runtime exceeds 4 hours. Continuous operation depends on a quick battery swapping and automatic charging strategy.
The Cruzr Y1 page mentions quick swapping and automatic charging. It does not confirm autonomous battery swapping; that is not presented here as a Y1 specification.
It is an advertised capability, not a universal guarantee with any payload. Turns, clearance, obstacles, arms, tools and materials need route-specific validation.
The official source presents modular tools. The gripper or hand type and included accessories must be confirmed in the configuration and commercial proposal.
That integration must be assessed. The proposal needs to identify interfaces, signals, sequences, equipment and safety responsibilities; immediate compatibility with every system is not assumed.
750 mm is the advertised arm reach. 0–1.8 m is the platform’s advertised vertical reach. These are different measurements that must be assessed against actual task geometry.
HUMATRIX indicative price
Share your task, materials and objectives. A useful proposal starts with a well-defined application.
Official technical and image source: UBTECH · Cruzr Y1 ↗
Information verified on 30/09/2026.
